Caterpillar waterproof and dustproof rugged smartphones rated IP67-IP68 & MIL-STD-810G

You will find below the list of the Caterpillar waterproof and dustproof tough smartphones rated IP67, IP68, IP69K or MIL-STD-810G.

They are approximately classified according to their date of announcement or availability on the market, from newest to oldest.

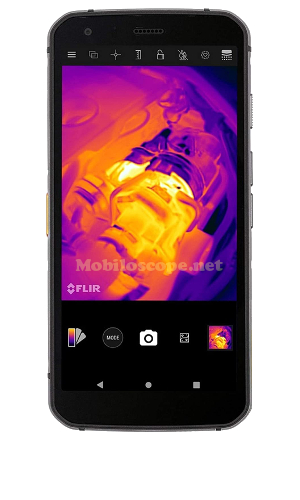

Caterpillar CAT S62 Pro Caterpillar CAT S62 Pro:
Highly rugged smartphone with a high grade aluminium body, a Full HD+ display and compatible with 4G LTE data networks. It is dustproof and waterproof rated IP68 (up to 1.5 meters for 35 mn), IP69 and compliant to the US Military Standard 810H (MIL-STD-810H). It is built to withstand a fall of up to 1.8 meter onto steel and temperature between -25°C and 55°C for up to 24 hours. It has a a FLIR thermal camera, a fingerprint sensor and dual SIM capability (optional).
It comes with a Super Bright 5.7-inch multi-touch capacitive Gorilla Glass 6 display with a FHD+ resolution (2160 x 1080) 18:9. It supports touch operation using gloves or wet fingers.
On the inside, it runs with Android 10 (with upgrade to 11) on a 2.0 GHz octa-core processor Qualcomm Snapdragon 660, 6 GB of RAM, 128 GB of internal storage and a dedicated microSD card slot up to 256 GB.
It sports a 12 MP autofocus dual pixel camera with a dual-LED flash (Front 8 MP) and video 2160p@30fps.
GPS/Glonass/Galileo/Beidou receiver, FM radio, accelerometer, digital compass, barometer, SOS and programmable buttons and FLIR thermal camera (Lepton 3.5 module, 1440x1060 HD output with vividIR with range -20°C to 400°C).
Connectivity WiFi b/g/n/ac Dual Band 2.4 & 5GHz, OTG, NFC, 4G LTE, BT 5.0, USB 2.0 Type C, Quick Charge 4.0 and Dual hybrid nano-SIM (optional).
It measures 158.5 x 76.7 x 11.9 mm, it weighs 248g and its built-in battery has a capacity of 4,000mAh.
Availability: China - On-line sale - worldwide shipping




Caterpillar CAT S52 Caterpillar CAT S52:
Highly rugged smartphone with a HD+ display, built with a High-grade aluminium frame and compatible with 4G LTE data networks. It is dustproof and waterproof rated IP68 (1.5 meters for 35mn) and compliant to the US Military Standard 810G (MIL-STD-810G) and can operate at temperatures between -30°C and +65°C. It is built to withstand a fall on concrete of up to 1.5 meter on concrete. It has dual SIM capability.
It comes with a 5.65-inch capacitive multitouch Gorilla Glass 6 IPS display with a a HD+ resolution (1440 x 720 - ratio 18:9) and a super bright screen. It supports touch operation using gloves and wet fingers.
On the inside, it runs with Android Pie (9.0) on a 2.3 GHz Octo-core Helio P35 processor, 4 GB of RAM, 64 GB of internal storage and a microSD card slot up to 64 GB.
It sports a 12 MP autofocus EIS camera with a LED flash (Front 8 MP) and video 1080p@30fps.
GPS/Glonass/BDS/Galileo receiver, FM radio, accelerometer, digital compass and a fingerprint sensor.
Connectivity WiFi b/g/n/ac Dual Band 2.4GHz & 5GHz, BT 5.0, OTG, NFC, USB Type-C, 4G LTE 300 MBit/s and Single or Dual nano-SIM.
It measures 158.1 x 76.6 x 9.69 mm, it weighs 210g and its built-in battery has a capacity of 3,100mAh.
Availability: Globally - On-line sale - worldwide shipping




Caterpillar CAT S48c Caterpillar CAT S48c:
Highly rugged smartphone with a Full HD display and compatible with 4G LTE data networks. It is dustproof and waterproof rated IP68 (1.2 meters for 35mn) and compliant to the US Military Standard 810G (MIL-STD-810G) and can operate at temperatures between -25°C and +55°C. It is built to withstand a fall of up to 1.8 meter on concrete.
It comes with a 5.0-inch capacitive multitouch Gorilla Glass 5 IPS display with a a Full HD resolution (1920 x 1080). It supports touch operation using gloves and wet fingers.
On the inside, it runs with Android Oreo (8.1) on a 2.2 GHz Octa-core Qualcomm SDM630 processor, 4 GB of RAM, 32 GB of internal storage and a microSD card slot up to 128 GB.
It sports a 13 MP autofocus camera with a LED flash (Front 5 MP) and video 1080p@30fps.
GPS/Glonass/BeiDou receiver, FM radio, accelerometer and digital compass.
Connectivity WiFi b/g/n/ac Dual Band 2.4/5GHz, BT5.0, OTG, NFC, 4G LTE and a single nano-SIM.
It measures 149.9 x 76.2 x 13.5 mm, it weighs 263g and its built-in battery has a capacity of 4,000mAh.
Availability: United States for the operators Sprint & Verizon - On-line sale




Caterpillar CAT S61 Caterpillar CAT S61:
Highly rugged smartphone with a Full HD display and compatible with 4G LTE data networks. It is dustproof and waterproof rated IP68 (up to 3 meters for 60 mn) and compliant to the US Military Standard 810G (MIL-STD-810G). It is built to withstand a fall of up to 1.8 meter on concrete. It has dual SIM capability (optional). It sports a FLIR thermal camera, an indoor air quality sensor and a laser-assisted measurement tool.
It comes with a 5.2-inch multi-touch capacitive Gorilla Glass 5 display with a FHD resolution (1920 x 1080). It supports touch operation using gloves or wet fingers.
On the inside, it runs with Android Oreo (8.0) on a 2.2 GHz octa-core processor Qualcomm Snapdragon 630 (SDM630), 4 GB of RAM, 64 GB of internal storage and a dedicated microSD card slot up to 256 GB.
It sports a 16 MP autofocus camera with a dual-LED flash (Front 8 MP) and video 2160p@30fps.
GPS/Glonass/Galileo/QZSS receiver, FM radio, accelerometer, digital compass, barometer, SOS button, indoor air quality sensor, laser-assisted measurement tool and FLIR thermal camera (Lepton module).
Connectivity WiFi b/g/n, NFC, 4G LTE, BT 5.0, USB 2.0 Type C 1.0, Quick Charge 4.0 and Dual nano-SIM (optional).
It measures 150 x 76 x 13 mm and its built-in battery has a capacity of 4,500mAh.
Availability: Globally - On-line sale - worldwide shipping




Caterpillar CAT S31 Caterpillar CAT S31:
Highly rugged HD smartphone, it is compatible with 4G LTE data networks. It is dustproof and waterproof rated IP68 and compliant to the US Military Standard 810G (MIL-STD-810G) and can operate at temperatures between -30°C and +55°C. It is built to withstand a fall of up to 1.8 meter on concrete. It has dual SIM capability (optional).
It comes with a 4.7-inch capacitive Gorilla Glass 3 super bright display with a HD resolution of 1280 x 720. It supports touch operation using gloves and wet fingers.
On the inside, it runs with Android Nougat on a 1.1 GHz quad-core processor Qualcomm (MSM8909), 2 GB of RAM, 16 GB of internal storage and a microSD card slot up to 128GB.
It sports a 8 MP autofocus camera with a LED flash (Front 2 MP) and video Full HD (1080p - 30 fps).
GPS/Glonass/Beidou receiver, FM radio, accelerometer and digital compass.
Connectivity WiFi b/g/n, 4G LTE, BT 4.1, OTG and Dual nano-SIM (optional).
It measures 146.0 x 74.42 x 12.6 mm, it weighs 200g and its built-in battery has a capacity of 4,000mAh.
Availability: Globally - On-line sale - worldwide shipping




Caterpillar CAT S41 Caterpillar CAT S41:
Highly rugged smartphone with a Full HD display and compatible with 4G LTE data networks. It is dustproof and waterproof rated IP68 (2 meters for 60mn) and compliant to the US Military Standard 810G (MIL-STD-810G) and can operate at temperatures between -25°C and +55°C. It is built to withstand a fall on concrete of up to 1.8 meter on concrete. It has dual SIM capability (optional).
It comes with a 5.0-inch capacitive multitouch Gorilla Glass 5 IPS display with a a Full HD resolution (1920 x 1080) and a super bright screen. It supports touch operation using gloves and wet fingers.
On the inside, it runs with Android Nougat (7.0) on a 2.3 GHz Octo-core Mediatek MT6757 Helio P20 processor, 3 GB of RAM, 32 GB of internal storage and a microSD card slot up to 256 GB.
It sports a 13 MP autofocus camera with a LED flash (Front 8 MP) and video 1080p@30fps.
GPS/Glonass/BDS receiver, FM radio, accelerometer and digital compass.
Connectivity WiFi b/g/n, NFC, 4G LTE 150 MBit/s, BT 4.1, OTG and Single or Dual nano-SIM.
It measures 152 x 75 x 12.9 mm, it weighs 218g and its built-in battery has a capacity of 5,000mAh.
Availability: Globally - On-line sale - worldwide shipping




Caterpillar CAT S60 Caterpillar CAT S60:
Highly rugged smartphone with a HD display and compatible with 4G LTE data networks. It is dustproof and waterproof rated IP68 (up to 5 meters for 60 mn) and compliant to the US Military Standard 810G (MIL-STD-810G). It is built to withstand a fall of up to 1.8 meter on concrete. It has dual SIM capability. It sports a FLIR thermal camera.
It comes with a 4.7-inch multi-touch capacitive Gorilla Glass 4 a-Si AHVA display with a HD resolution (1280 x 720). It supports touch operation using gloves and wet fingers.
On the inside, it runs with Android Marshmallow (v6.0) on a 1.2/1.5 GHz octa-core processor Qualcomm Snapdragon 617 (MSM8952), 3 GB of RAM, 32 GB of internal storage and a microSD card slot up to 256GB.
It sports a 13 MP autofocus camera with a dual-LED flash (Front 5 MP) and video Full HD (1080p - 30 fps).
GPS/Glonass/BDS receiver, FM radio, accelerometer, digital compass, SOS button and FLIR thermal camera (Lepton module).
Connectivity WiFi b/g/n, NFC, 4G LTE, BT 4.1, OTG and Dual nano-SIM.
It measures 147.9 x 73.4 x 12.7 mm, it weighs 225g and its built-in battery has a capacity of 3,800mAh.
Availability: Globally - On-line sale - worldwide shipping




Caterpillar CAT S30 Caterpillar CAT S30:
Highly rugged smartphone, it is compatible with 4G LTE data networks. It is dustproof and waterproof rated IP68 and compliant to the US Military Standard 810G (MIL-STD-810G) and can operate at temperatures between -25°C and +55°C. It is built to withstand a fall of up to 1.8 meter on concrete. It has dual SIM capability.
It comes with a 4.5-inch capacitive Gorilla Glass 3 display with a resolution of 854 x 480. It supports touch operation using gloves and wet fingers.
On the inside, it runs with Android Lollipop (5.1) on a 1.1 GHz quad-core processor Qualcomm Snapdragon 210 (MSM8909), 1 GB of RAM, 8 GB of internal storage and a microSD card slot up to 64GB.
It sports a 5 MP autofocus camera with a LED flash (Front 2 MP) and video Full HD (1080p - 30 fps).
GPS/Glonass receiver, FM radio, accelerometer and digital compass.
Connectivity WiFi b/g/n, 4G LTE 150 MBit/s, BT 4.1, OTG and Dual nano-SIM.
It measures 141.9 x 72.74 x 13.25 mm, it weighs 181g and its built-in battery has a capacity of 3,000mAh.
Availability: Globally - On-line sale - worldwide shipping





Caterpillar CAT S40 Caterpillar CAT S40:
Highly rugged smartphone with qHD display and compatible with 4G LTE data networks. It is dustproof and waterproof rated IP68 and compliant to the US Military Standard 810G (MIL-STD-810G) and can operate at temperatures between -25°C and +55°C. It is built to withstand a fall of up to 1.8 meter on concrete. It has dual SIM capability.
It comes with a 4.7-inch capacitive Gorilla Glass 4 IPS display with a qHD resolution (960 x 540) and a super bright screen. It supports touch operation using gloves and wet fingers.
On the inside, it runs with Android Lollipop (5.1) on a 1.1 GHz quad-core processor Qualcomm Snapdragon 210 (MSM8909), 1 GB of RAM, 16 GB of internal storage and a microSD card slot up to 64 GB.
It sports a 8 MP autofocus camera with a LED flash (Front 2 MP) and video Full HD (1080p - 60 fps).
GPS/Glonass receiver, FM radio, accelerometer and digital compass.
Connectivity WiFi b/g/n, NFC, 4G LTE 150 MBit/s, BT 4.1, OTG and Dual nano-SIM.
It measures 144,9 x 74,1 x 12,5 mm, it weighs 185g and its built-in battery has a capacity of 3,000mAh.
Availability: Globally - On-line sale - worldwide shipping


Caterpillar CAT S50 Caterpillar CAT S50:
Highly rugged smartphone with HD display and compatible with 4G LTE data networks. It is dustproof and waterproof rated IP67 and compliant to the US Military Standard 810G (MIL-STD-810G) and can operate at temperatures between -25°C and +55°C.
It comes with a 4.7-inch capacitive Gorilla Glass 3 display with a HD resolution (1280 x 720). It supports touch operation using wet fingers.
On the inside, it runs with Android KitKat (4.4.2) on a 1.2 GHz quad-core processor Qualcomm Snapdragon 400 (MSM8926), 2 GB of RAM, 8 GB of internal storage and a microSD card slot up to 64 GB.
It sports a 8 MP autofocus camera with a LED flash and video Full HD (1080p - 30 fps).
GPS receiver, FM radio, accelerometer and digital compass.
Connectivity WiFi b/g/n, 4G LTE and BT 4.0.
It measures 144.5 x 77 x 12.7 mm, it weighs 185g and its removable battery has a capacity of 2,630mAh.
Availability: Globally - On-line sale - worldwide shipping





Caterpillar CAT B15Q Caterpillar CAT B15Q:
Highly rugged smartphone, it is an upgrade of the CAT B15 with a 1.3 GHz Quad-Core processor, 1 GB of RAM, a LED Flash and Android KitKat . It features an internal hardened aluminium frame in a rubberized casing. It can withstand a fall of 1.8m onto concrete. It is dustproof and waterproof rated IP67 and compliant to the US Military Standard 810G (MIL-STD-810G). It is operational between -20°C and +55°C. It has dual SIM capability.
It comes with a 4-inch multi-touch (2 points) capacitive Gorilla Glass display with a resolution of 800 x 480. It supports touch operation using wet fingers.
On the inside, it runs with Android KitKat (4.4) on a 1.3 GHz dual-core processor MT6577, 1 GB of RAM, 4 GB of internal storage and a microSD card slot up to 64 GB.
It sports a 5 MP autofocus camera with a LED flash and video.
GPS receiver and accelerometer.
Connectivity WiFi b/g/n, BT 4.0 and dual-Sim.
It measures 125 x 69.5 x 14.95 mm, it weighs 170g and its removable battery has a capacity of 2,000mAh.
Availability: Globally





Caterpillar CAT B15 Caterpillar CAT B15:
Highly rugged smartphone. It features an internal hardened aluminium frame in a rubberized casing. It can withstand a fall of 1.8m onto concrete. It is dustproof and waterproof rated IP67 and compliant to the US Military Standard 810G (MIL-STD-810G). It is operational between -20°C and +55°C. It has dual SIM capability.
It comes with a 4-inch multi-touch (2 points) capacitive Gorilla Glass display with a resolution of 800 x 480. It supports touch operation using wet fingers.
On the inside, it runs with Android Jelly Bean (4.1) on a 1 GHz dual-core processor, 512 MB of RAM, 4 GB of internal storage and a microSD card slot up to 32 GB.
It sports a 5 MP camera without flash and 720p video.
GPS receiver, FM radio with RDS and G-Sensor.
Connectivity WiFi b/g/n and dual-Sim.
It measures 125 x 69.5 x 14.95 mm, it weighs 170g and its removable battery has a capacity of 2,000mAh.
Also available: CAT B15 AWS for USA, Canada and Latin America with 1 GB of RAM.
Availability: North America, Europe, Middle East - On-line sale - worldwide shipping





Caterpillar CAT B10 Caterpillar CAT B10:
Highly rugged waterproof and dustproof smartphone rated IP67. It has dual SIM capability.
It comes with a 3.2-inch multi-touch capacitive display with a resolution of 480 x 320.
On the inside, it runs with Android Gingerbread (2.3.5) on a 800 MHz single-core processor, 512 MB of RAM and a microSD card slot up to 32 GB.
It sports a 5MP autofocus camera.
GPS receiver, FM Radio with RDS, accelerometer and e-compass.
Connectivity: WiFi b/g/n and dual SIM.
It measures 121 x 65 x 22 mm, it weighs 201 g and its battery has a capacity of 2,000 mAh.
Availability: North America, Europe, Middle East - On-line sale - worldwide shipping
